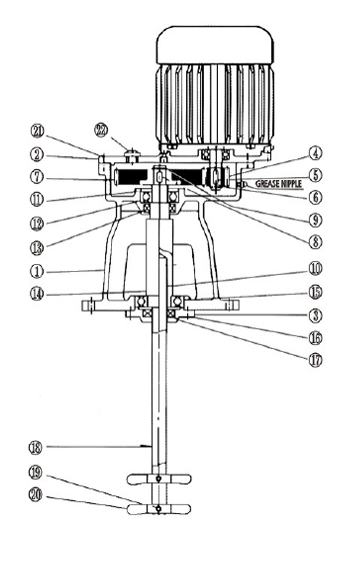

교반기
PART NO | PART NAME | MATL | QTV |
---|---|---|---|
1 | BODY | FC20 | 1 |
2 | MOTOR FLANGE | FC20 | 1 |
3 | BEARING COVER | FC20 | 1 |
4 | IST PINION | S45C | 1 |
5 | KEY | S45 | 1 |
6 | SNAP RING | PUR | 1 |
7 | 1ST GEAR | BAKELTTE | 1 |
8 | KEY | S45C | 1 |
9 | SNAP RING | PUR | 1 |
10 | WRENCH BOLT | S45C | 1 |
11 | SNAP RING | PUR | 1 |
12 | BERING | PUR | 1 |
13 | OIL SEAL | PUR | |
14 | SPINDLE | S45C | 1 |
15 | BERING | PUR | 1 |
16 | BOLT | S45C | 1 |
17 | OIL SEAL | PUR | 1 |
18 | SHAFT | SUS304 | 1 |
19 | SET BOLT | SUS304 | 1 |
20 | IMPELLER | SUS304 | 2 |
21 | BOLT | S45C | 6 |
22 | AIR VENT | PVC | 1 |
